Diode Dynamics SSC2 Pro/Max LED Pod

Small. Powerful. Engineered for precision.

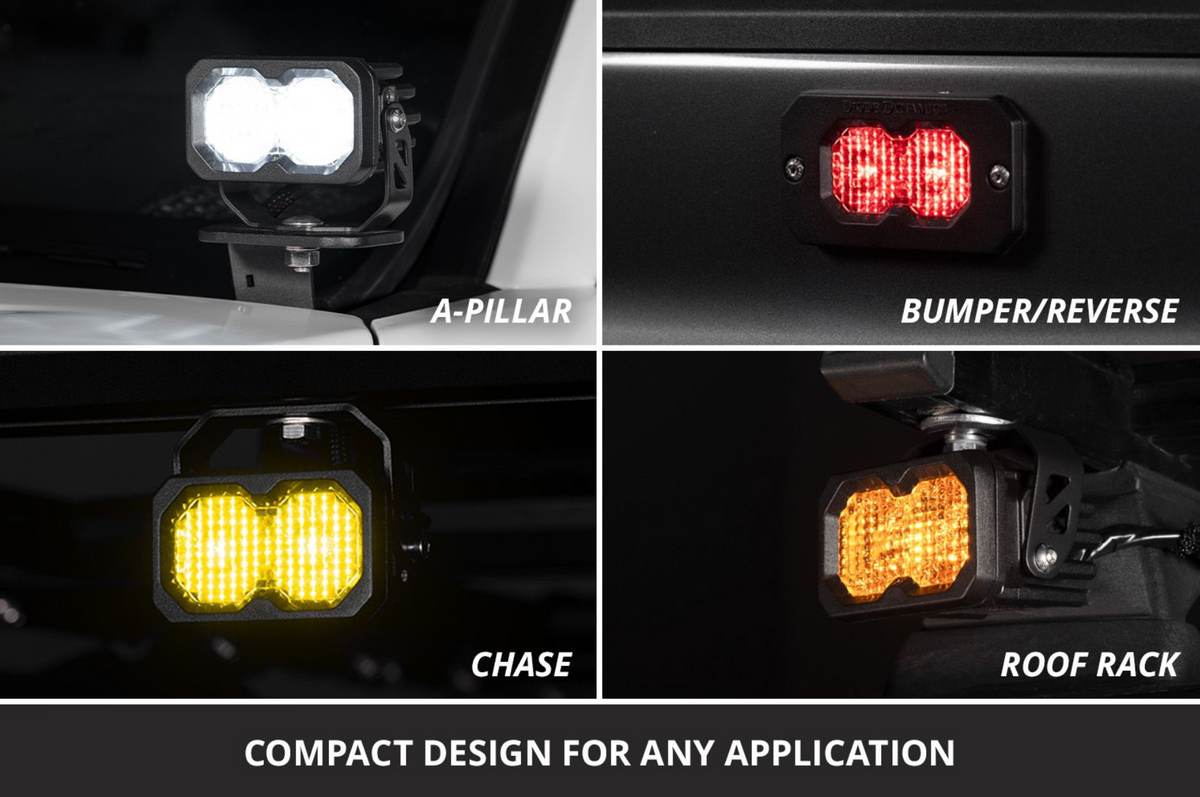

The SSC2 is a 2-inch LED pod built to deliver exceptional light from the tightest spaces. Its compact footprint allows mounting almost anywhere—roof racks, roll bars, bumpers, A-pillars, or custom setups—without sacrificing output. The Pro and Max versions provide high-performance lighting for modular systems or single-unit applications. The Max delivers up to 3,900 lumens, making it the most powerful 2-inch pod available.

Optics That Deliver

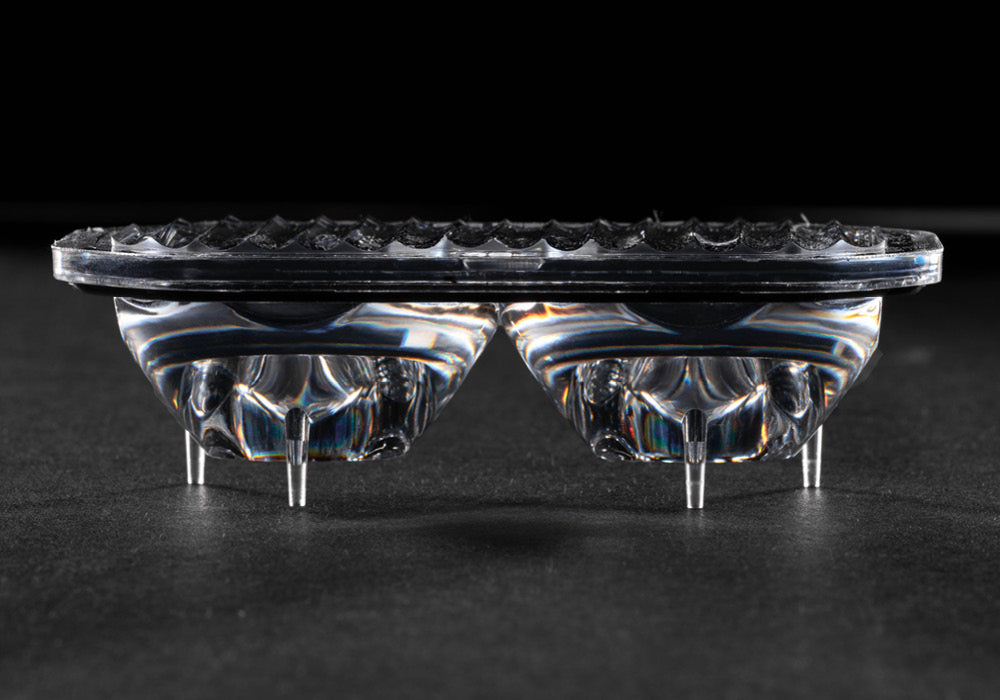

At the core of the SSC2 is a custom Total Internal Reflection (TIR) optic. Every lumen from the high-intensity LED is captured and directed precisely where it’s needed, reducing glare and boosting efficiency. The TIR optic also serves as the lens, minimizing loss and producing a clean, controlled beam that outperforms standard reflectors.

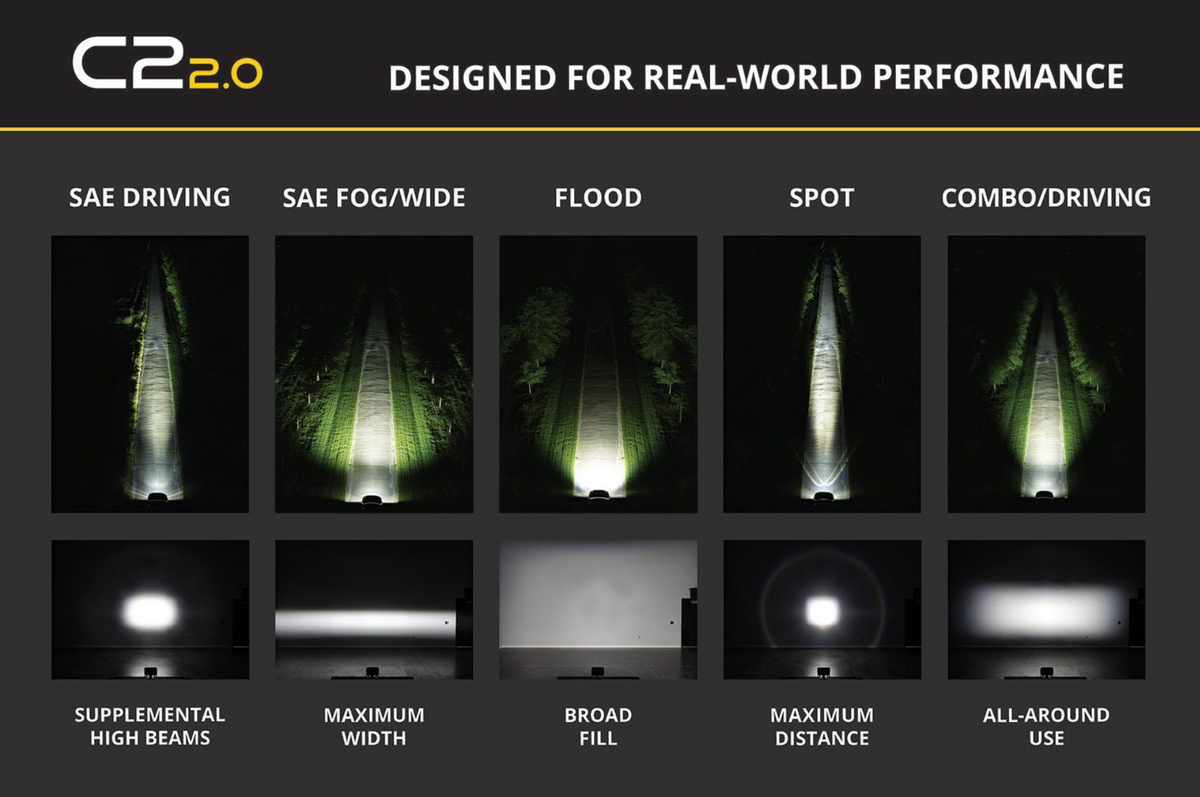

Beam Patterns for Every Task

Each SSC2 beam pattern is engineered with optical simulation for real-world performance:

• Driving/Combo – 55° × 20° rectangular spread for balanced width and distance, ideal for all-around use.

• SAE Driving – 20° × 12° for forward visibility at speed, supplementing your high beams.

• SAE Fog/Wide – 90° × 10° for wide, low-mounted coverage. Cuts through fog or illuminates the area immediately ahead.

• Flood – 70° × 45° spread for uniform illumination. Perfect for campsites, cargo areas, trailers, or workspaces.

• Spot – Tight 8° beam for distance-focused applications. Focused power for precision lighting.

When paired and installed according to local regulations, SSC2 Pro/Max pods meet SAE standards for Driving/Auxiliary High Beam and Foglamp applications.

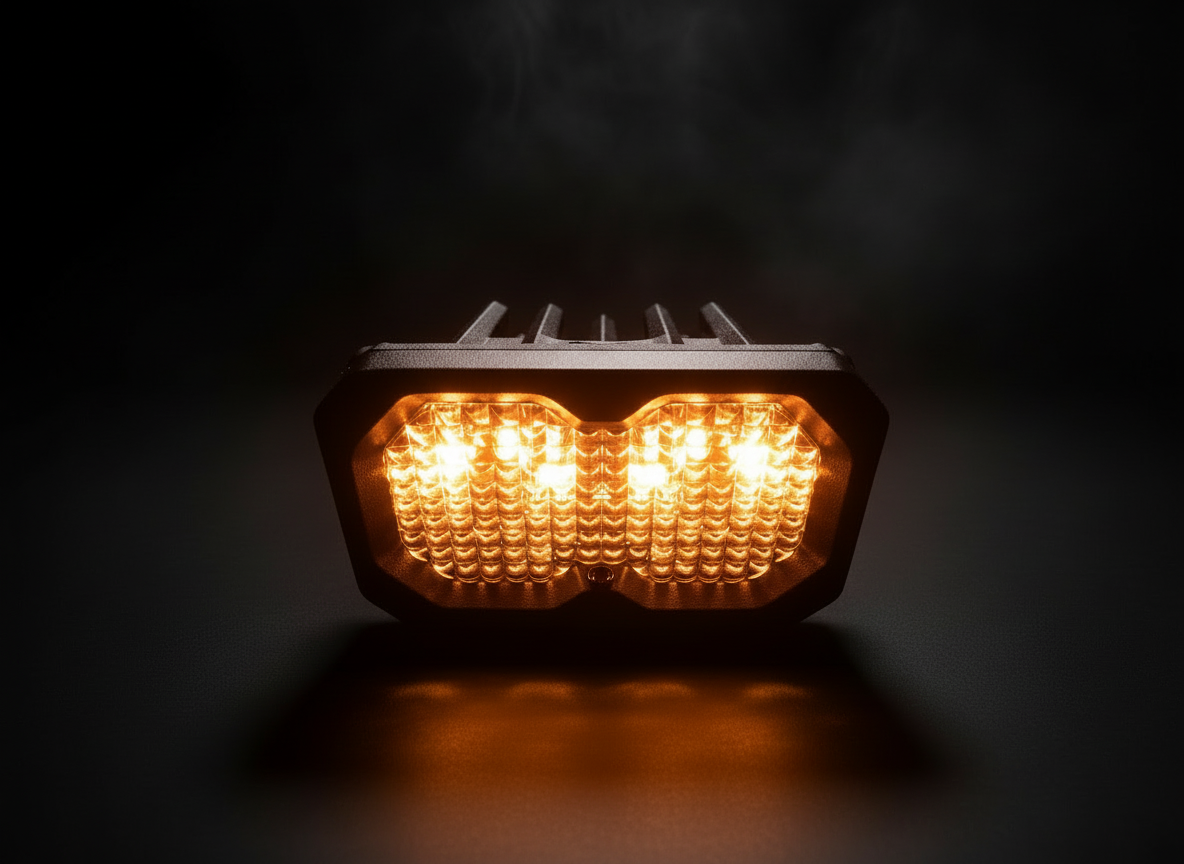

Backlight Functionality

Integrated amber or red backlighting fully illuminates the TIR optic for accent or signaling. When a selective yellow lens is chosen, amber backlighting is standard, while red provides OEM-matched rear visibility or style. Backlighting adds functionality without adding clutter.

Modular, Adjustable, and Connected

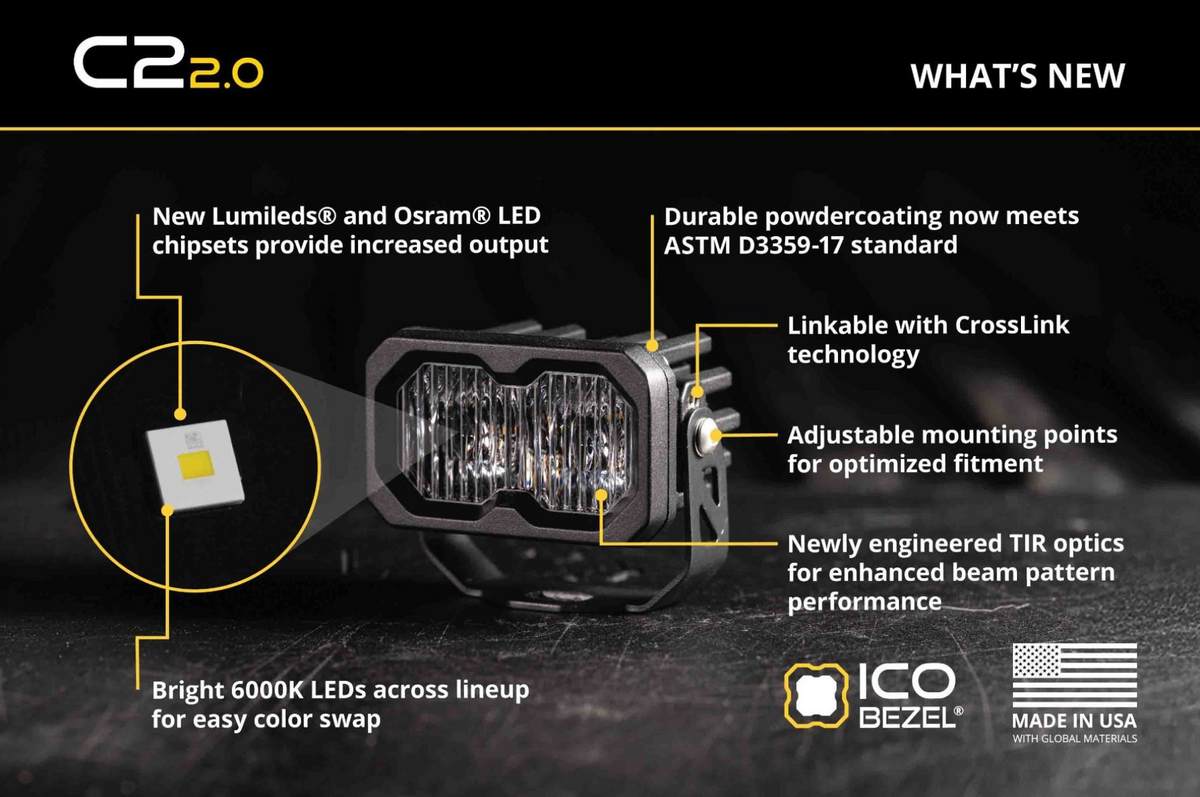

The SSC2 features multiple mounting points for height and angle adjustment. CrossLink technology allows multiple pods to link seamlessly into a single custom lightbar. Snap-on covers protect the lens and offer quick customization with clear, amber, yellow, smoked, or black options.

Built for Real-World Reliability

Housed in powder-coated aluminum with enhanced thermal management, the SSC2 Pro/Max is engineered to survive harsh conditions. Tested to SAE standards for vibration, temperature extremes, moisture, and corrosion, it’s built to perform and last. Designed and assembled in the USA, backed by a limited lifetime warranty.

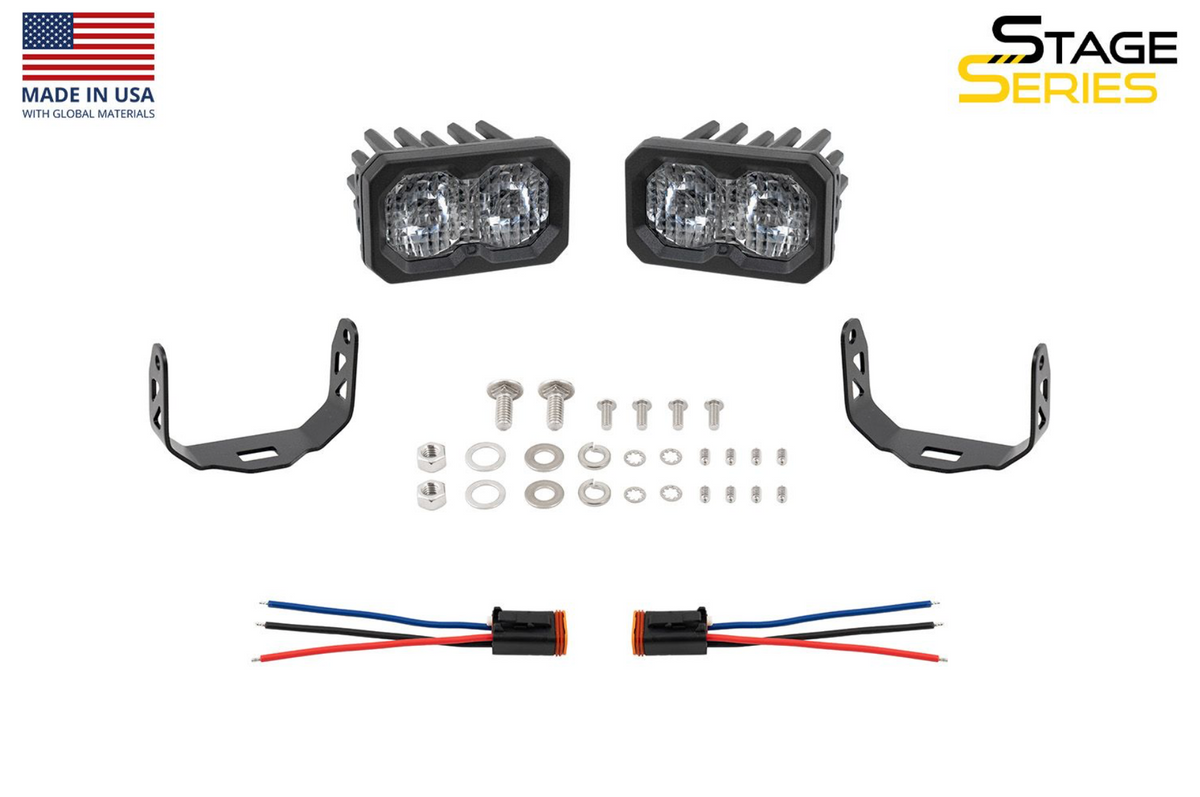

Sold as a pair.

Technical Specifications

• Lens/Optic: Custom TIR optic (acts as lens and optic)

• Beam Patterns: Driving/Combo, SAE Driving, SAE Fog/Wide, Flood, Spot

• Power/Output: Pro – 20 W | Max – 38.5 W, 3,900 lumens (Max)

• Color Options: White (6000K), Selective Yellow (3000K optional)

• Backlight Options: Amber, Red (amber standard with Selective Yellow)

• Housing: Powder-coated aluminum with enhanced heatsink

• Mounting: Multiple adjustable points, CrossLink compatible, snap-on covers

• Environmental: Tested to SAE standards – vibration, temperature, moisture, corrosion

• Warranty: Limited Lifetime

• Made in USA: Engineered and assembled
